Application

The Applications page in the Designer area allows you to manage Applications in Nexus. An Application in Nexus is a configuration of one or more Modules that are bundled, versioned, and deployed together. Applications simplify the process of grouping related functionality, ensuring consistent deployment across devices and environments.

Applications can represent:

  • A complete solution (e.g., OEE Monitoring or Vision Quality Inspection)

  • A reusable configuration (e.g., Monitoring Application, Edge Data Processing Pipeline, or ML model package)

Where to Find Applications

The Applications Page

Applications are accessible from the Designer → Applications menu in the Nexus Management Portal.

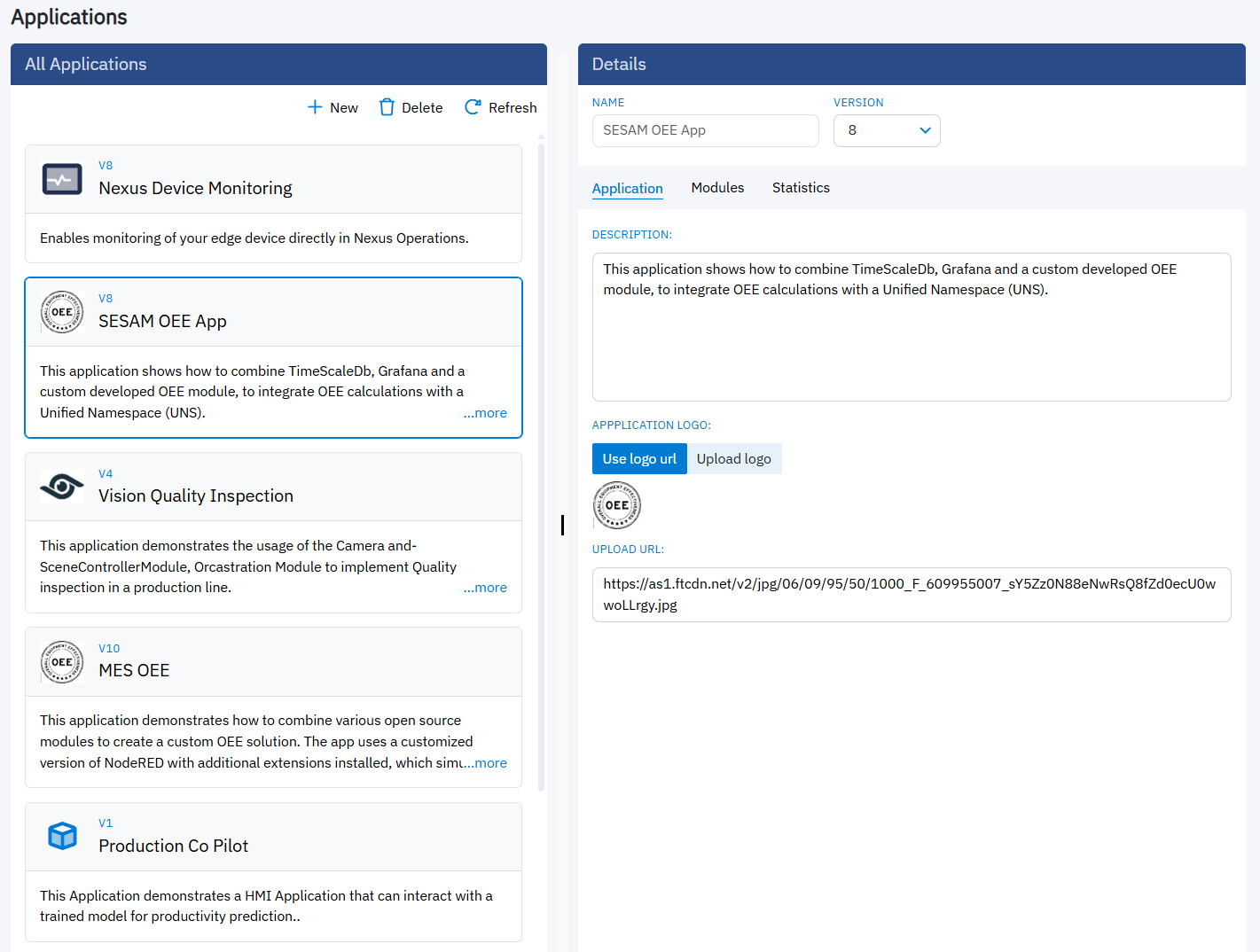

The Applications page provides an overview of all created applications in your environment.

Page Layout

The Applications page is divided into two main sections:

  • Application List (left panel) Displays all applications with their name, version, description, and logo. Each application card indicates:

    • Application Name & Version

    • Short Description

    • Publisher logo or custom logo

  • Details Panel (right panel) Shows details for the selected application, including:

    • Application Information: Name, version, description

    • Application Logo: Upload or reference via URL

    • Tabs:

      • Application – General details and description

      • Modules – Configure modules included in the application

      • Statistics – Usage and performance statistics

Creating a New Application

To create a new application:

  1. Navigate to the Applications page.

  2. Click the + New button.

Create Application Window

  1. In the New Application dialog, provide the following details:

    • Application Name – A unique and descriptive name.

    • Description – A clear explanation of the application’s purpose.

    • Application Logo – Either upload an image or provide a logo URL. If no logo is provided, a default application logo is used for the application.

    • Enable Application Monitoring (optional) – Adds 2 essential modules to the Application to enable Monitoring on the Device where the Application is deployed:

      • DeviceMonitoringModule: The device monitoring module is responsible for gathering metrics from the device and send these metrics to the cloud to enable monitoring.

      • localblobstorage: The DeviceMonitoringModule depends on the localblobstorage for storing and forwarding essential metrics to the cloud.

  2. Click Create to save.

The new application will now appear in the Application List in Version 1.

When an Application has been created it can be added to a Device in the Application Tab of the Device Configuration. Once the application is added, it can be deployed to the Device.

Deleting an Application

To delete an application:

  1. Select the application from the Application List.

  2. Click the Delete button in the toolbar.

  3. Confirm the deletion when prompted.

Note: Deleting an application removes it from the Nexus environment, but does not impact already deployed instances of the Application on devices.
